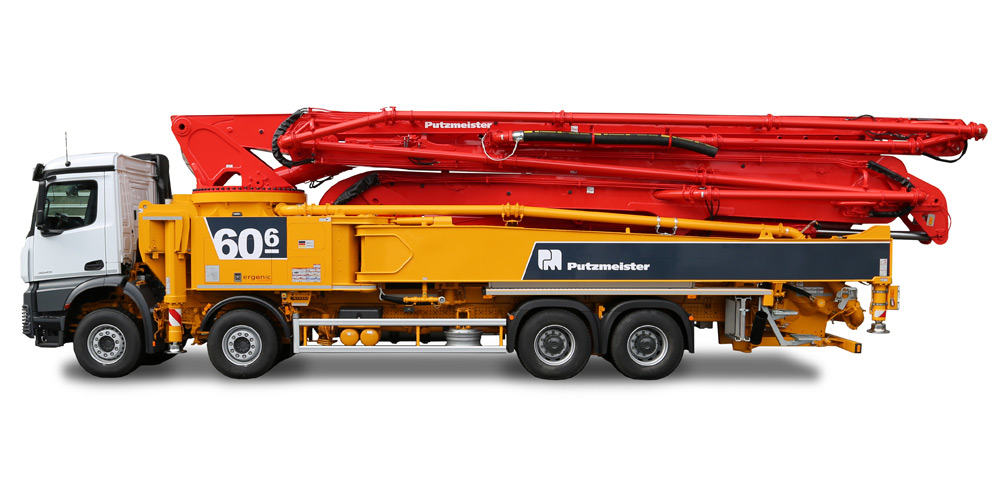

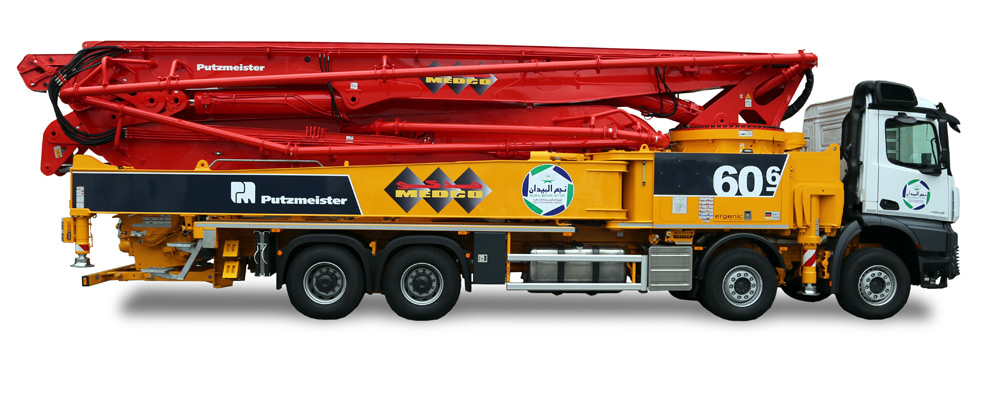

See the new 60 metre class pump - The M60-6 – More scope with lower weight
You see the M60-6 on the booth with the following configuration:
Chassis: Mercedes Benz AROCS 4845 K, Euro 3 Placing Boom: 59.2m Vertical reach, 5 arms, RZR-folding Concrete Pump: 160 m³/h Output, 230 mm Delivery Cylinder Diameter, 2100 mm Stroke Length
Lower weight on 4 or 5 axles
With the TRDI support, the M60 has a significantly lower weight than the big players – the M63 or M62 with TRDV. This simplifies the licensing procedure and increases the load capacity reserves.
Superb efficiency with closed loop hydraulic system
The Putzmeister hydraulics brings maximum efficiency to dayto-day work with its closed loop system and the latest core pump technology.
Economical in terms of time and costs
when it comes to service. The common parts strategy for all Putzmeister truckmounted
concrete pumps makes it easy for you to manage your fleet. This saves time and money. Maintenance-free components and a lower requirement for operating materials keep service costs within a narrow range
The flexible boom with 6 arms
■ Approx. 60 m vertical reach with 6 arms in RZR folding
■ Greater flexibility – a true 6-arm placing boom with 205° rotation angle at the last hinge
■ Continuous delivery line with nominal diameter of DN 125
■ Enhanced safety and precision when moving the boom thanks to the EBC soft vibration damping system (optional)
■ Standard 90° and 45° elbows, with lengthened collars for a longer service life
These are the options of the bauma machine
Middle East KIT (without transfer gear box)
Inner panel on flatbed
Spare wheel holder on concrete pump
Hot climate oil-cooler
Stowage compartment, RAL 7016
By-flow filter
Cable remote control
Foldable Splash guard
Middle East road approval KIT

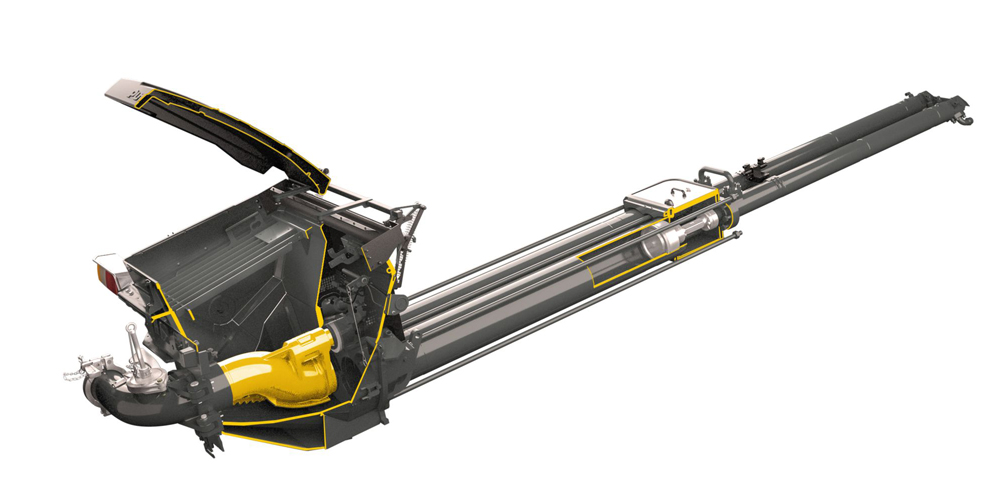

The iLS pump generation - intelligent Low Stroke – for more power and maximum service life
The heart of every truck-mounted concrete pump is the pump itself. Its mode of action, durability and operability are the economic indicators and determine the success of your operations. This is precisely the basis of the iLS pump generation, which delivers significantly improved data across the board. The iLS pump generation is the logical advancement of the tried and proven HLS generation
Special features:
■ Fuel savings of up to 25%
■ 3% increased efficiency through the prevention of leaks
■ 10 % better suction behaviour thanks to the elimination of constrictions in the concrete flow
■ Optimised drive unit
■ Maximum performance, minimum operating costs
■ Optimised conveying unit – ideal for the the heaviest concretes
■ Reduced wear for long service life
■ Optimised accessibility for maintenance and service
■ Automatic stroke correction without pump interruption
