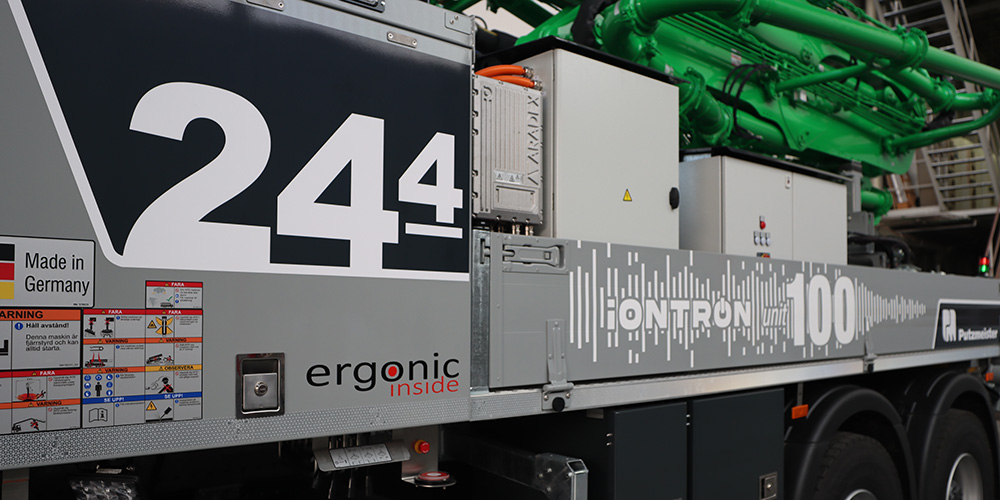

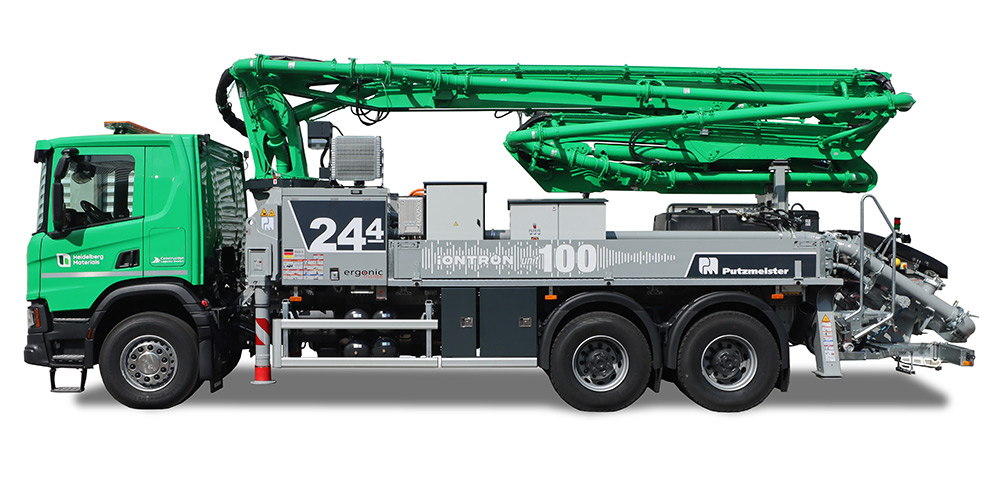

The Bauma Truck-mounted concrete pump M24-4 iONTRON No. 100 - Ideal for jobsites where emission and sound matters
You see the M24-4 iONTRON on the Putzmeister booth with the following configuration:
Chassis: SCANIA P420, Euro 6
Placing Boom: 24.1m Vertical reach, 4 arms, ZR-folding
Concrete Pump: 150 m³/h Output, 250 mm Delivery Cylinder Diameter, 2100 mm Stroke Length
These are the options of the M24-4 iONTRON, exhibited at bauma
Standardized delivery scope with .15 iLS core pump, iONTRON Hybrid drive, intelligent Boom Control (iBC)
■ Europe KIT
- iSC-light (Intelligent Setup Control)
- Foldable splash guard
- Warning signal, boom not in cradle
- DE/EU road approval KIT
- LED Side marker lamps
- Outline marker retroreflecting
- Underrun protection, lateral
- Tail marker boards
- Holder for hammer and trowel
- Pressure gauge for centralized lubrication system
■ High Line
- Support plates (4x), in 2 magazines, closed (instead of open)
- LED Indicator lights on support legs, front
- High pressure water pump 100 bar, with dry-run protection
- Horn at boom, mushroom button yellow, mounted on hopper
- Inner panel on flatbed
- Timber wood 8x600 in magazine
- LED Spotlights 2x for illumination support area
- Vibrator, radio remote/on site controlled
- LED Boom rear lights on Arm
- Stowage compartment, painted in RAL7016
- Water hose reel for water pump
2x LED Backup lights, additional

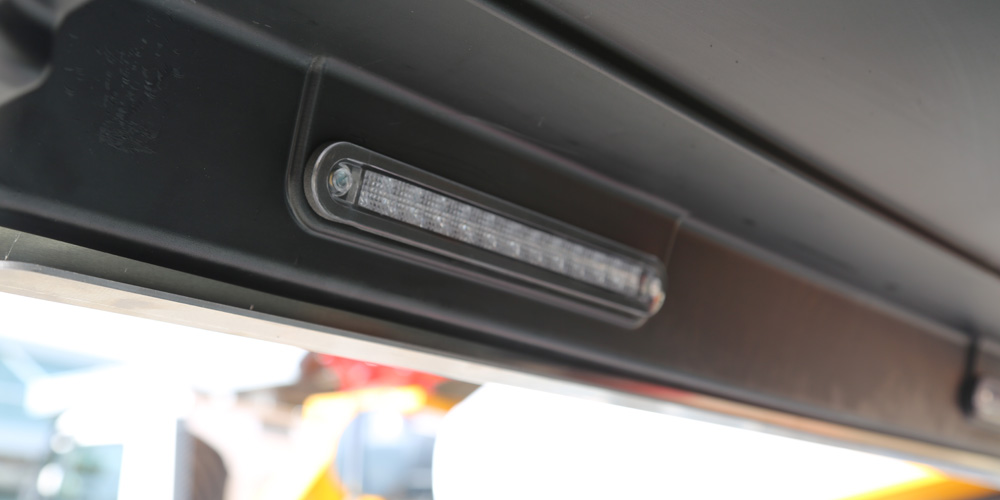

LED Lighting in splash guard foldable

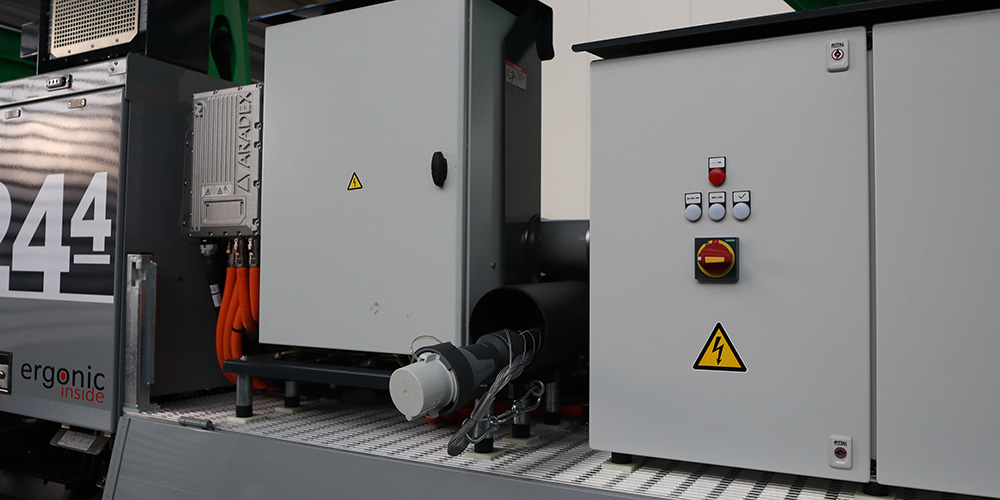

iONTRON Hybrid drive (without cable drum)
End hose Squeeze valve (EQV)

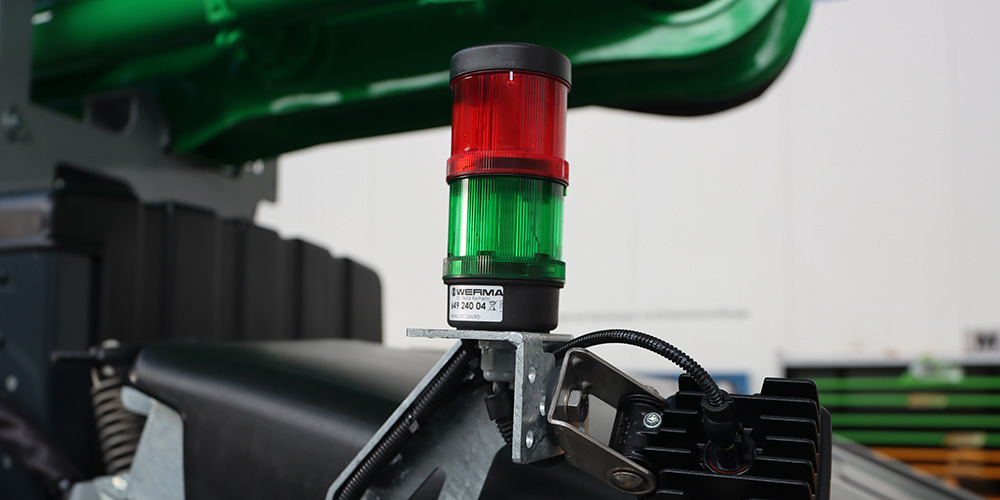

Pump control with level indicator, incl. signal lights

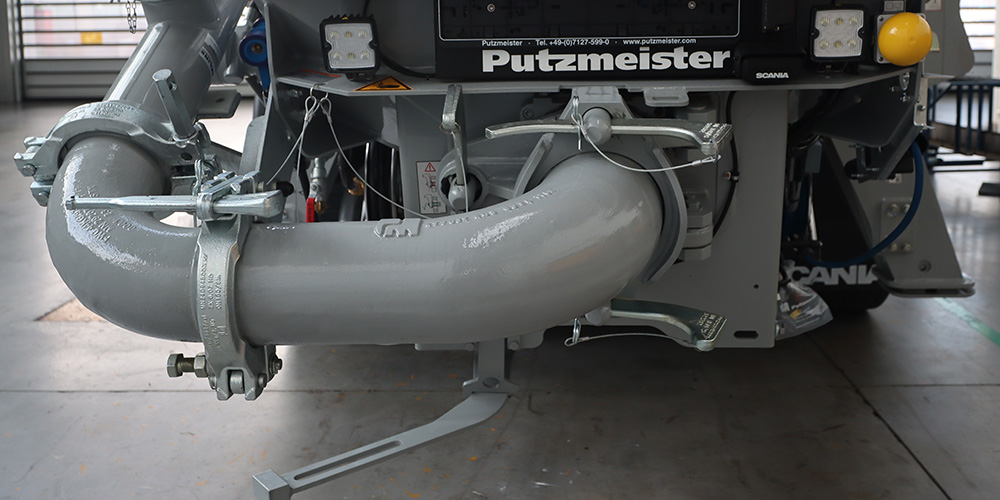

Hinged slewing elbow
Warning alarm, remote controller not on board

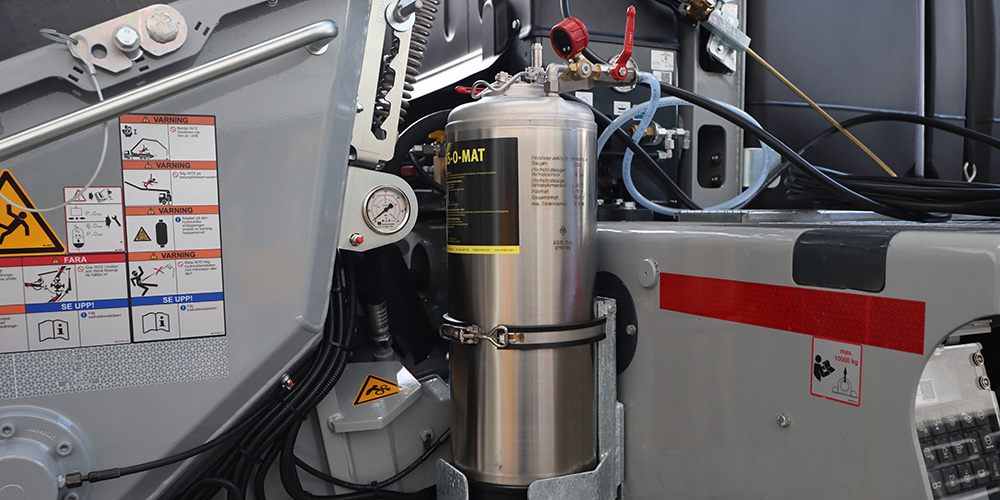

Spray tank with compressed air connection
■ Working light at boom tip, LED, removeable
■ Bio-degradable hydraulic oil package incl. by-flow filter
■ Connected Services: Machine Cockpit
■ Paintwork 3-coloured according to customer specifications

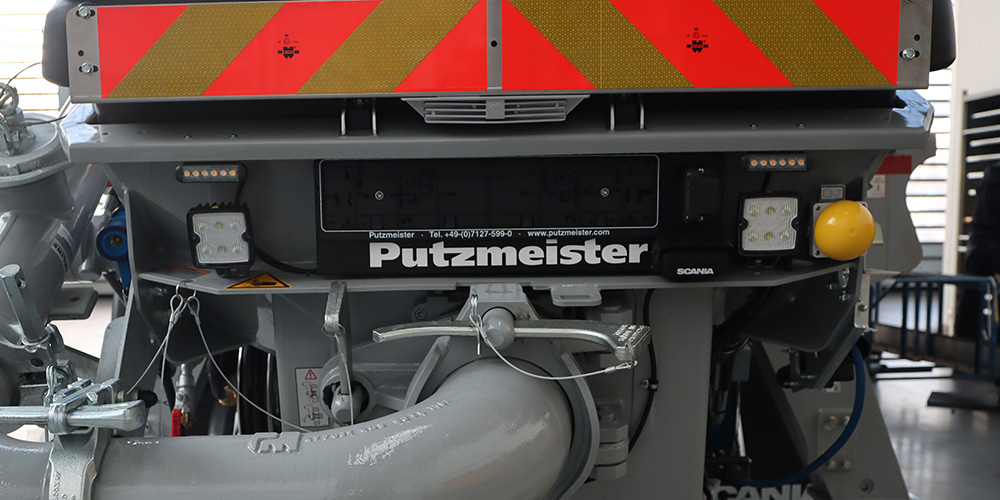

■ Rear lighting on bottom, slewable

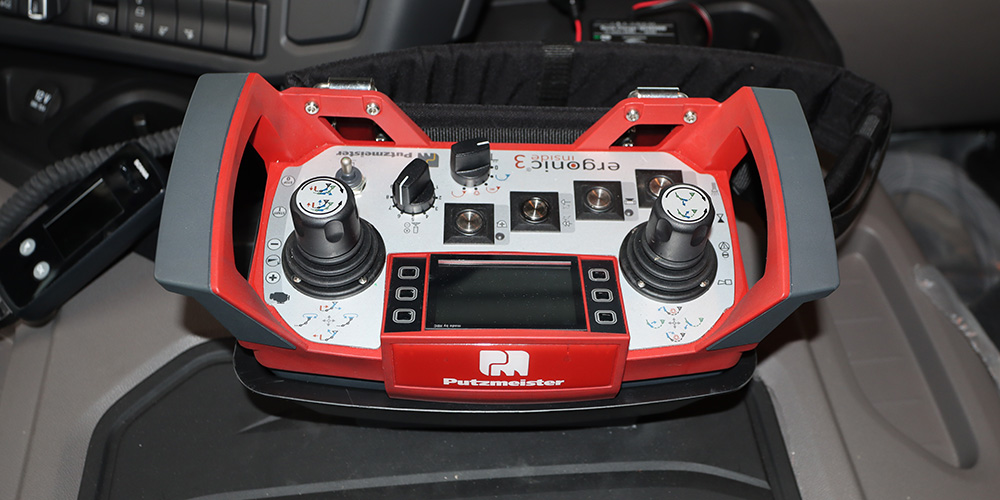

■ Radio remote control, additional transmitter
■ Cable remote control
■ Waterbox filling/drainage via C-hose connection
■ iBC (Intelligent Boom Control)
■ Air or water supply at boom end
■ Electro cable to boom tip
■ Water hose reel for high pressure water pump
■ Additional yellow mushroom button for horn
■ Additional Emergency Stop hopper left side
■ Hard metal wear parts kit
The iLS pump generation - intelligent Low Stroke – for more power and maximum service life
The heart of every truck-mounted concrete pump is the pump itself. Its mode of action, durability and operability are the economic indicators and determine the success of your operations. This is precisely the basis of the iLS pump generation, which delivers significantly improved data across the board. The iLS pump generation is the logical advancement of the tried and proven HLS generation
Special features:
■ Fuel savings of up to 25%
■ 3% increased efficiency through the prevention of leaks
■ 10 % better suction behaviour thanks to the elimination of constrictions in the concrete flow
■ Optimised drive unit
■ Maximum performance, minimum operating costs
■ Optimised conveying unit – ideal for the the heaviest concretes
■ Reduced wear for long service life
■ Optimised accessibility for maintenance and service
■ Automatic stroke correction without pump interruption
■ Field-tested and robust
■ Maximum quietness
