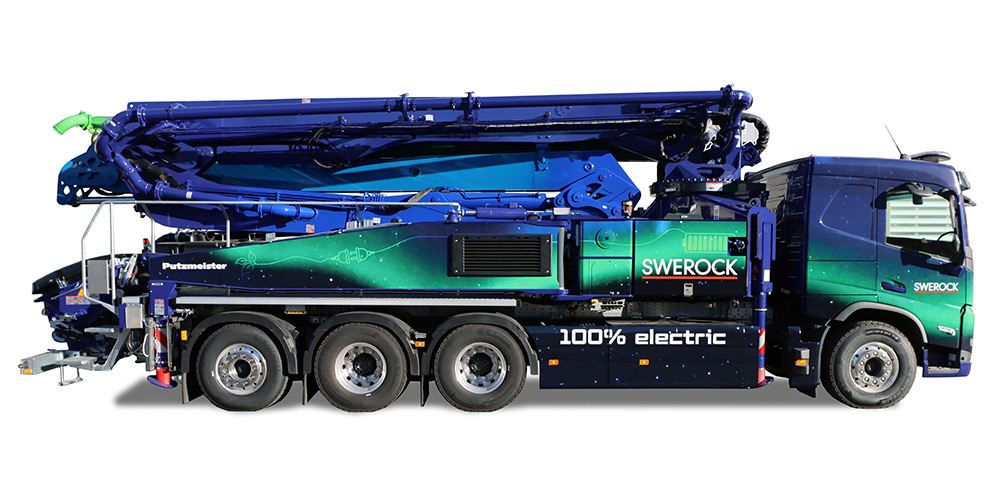

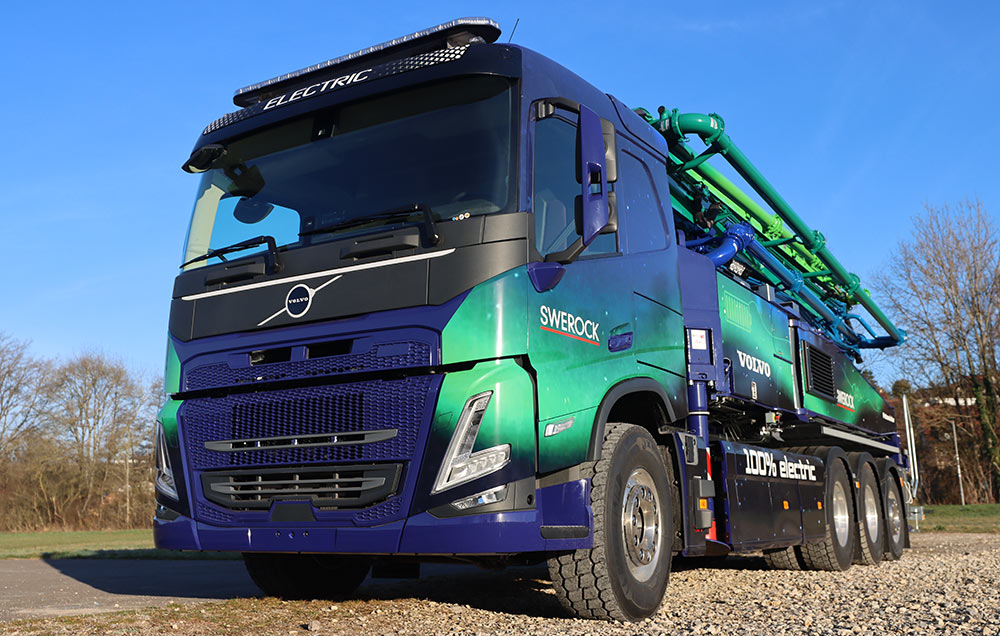

The Bauma M42-5 iONTRON is mounted on a full electric Volvo and is equipped with the 150 m³/h concrete pump .15 iLS.
You see the M42-5 on the booth with the following configuration:
Chassis: full electric Volvo
Placing Boom: 41.6m Vertical reach, 5 arms, RZ-folding
Concrete Pump: 150 m³/h Output, 250 mm Delivery Cylinder Diameter, 2100 mm Stroke Length
Highlights of this machine:
- Elelctric driving and pumping upt o 150 m³/h
- Full FLEX Support
The fully flexible outrigger gives you all the freedom you need when space on the construction site is tight again.
These are the options of the bauma machine
■ Europe KIT
- iSC (intelligent Setup Control)
- DE/EU road approval KIT
- Warning signal, boom not in cradle
- Holder for hammer and trowel
- Pressure gauge for centralized lubrication system
- Splash guard foldable
High Line Equipment
- Support plates (4x), in 2 magazines, closed (instead of open)
- Indicator lights on support legs, front and rear, LED
- High pressure water pump 100 bar, with dry-run protection
- Horn at boom, mushroom button yellow, mounted on hopper
- Inner panel on flatbed
- Timber wood 8x1000 in magazine (pos. depends on mounting)
- Spotlights 4x for illumination support area, LED
- Vibrator, radio remote/local controlled
- Boom rear lights on AP, LED
- Stowage compartment, RAL 7016 grey
- Water hose reel for water pump
LED lighting in foldable splash guard
The LED lighting in foldable splash guard brings light to the hopper area

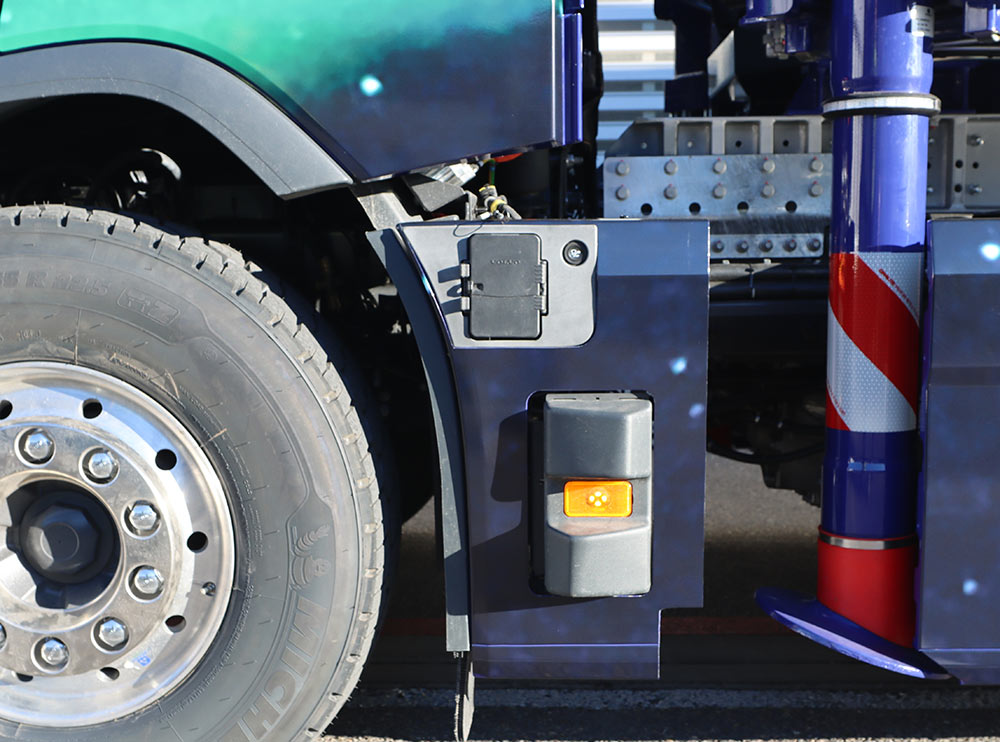

iONTRON hybrid drive
End hose squeezing valve (EQV)
SH Safety End hose 3m DN 125 split (1m+2m)

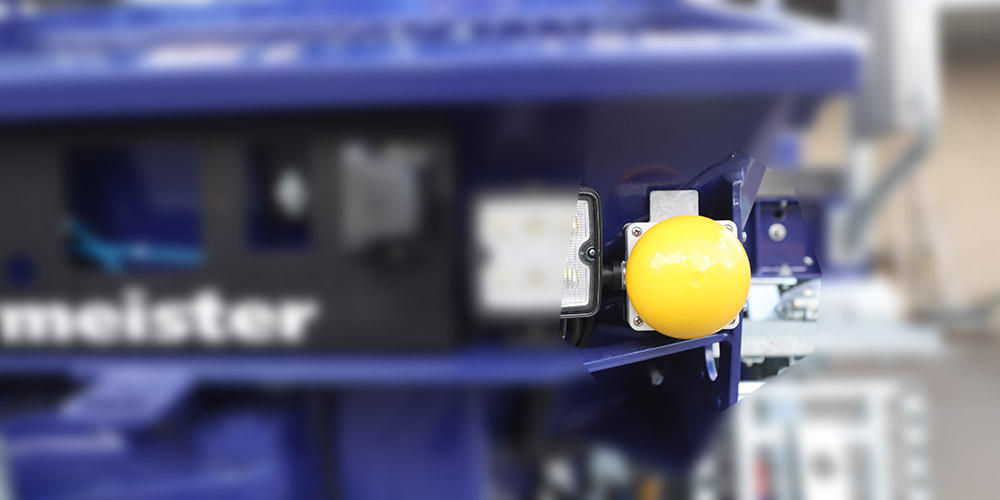

Additional Mushroom button (yellow) for horn, mounted left on hopper
All around camera-system 360°, CAMOS

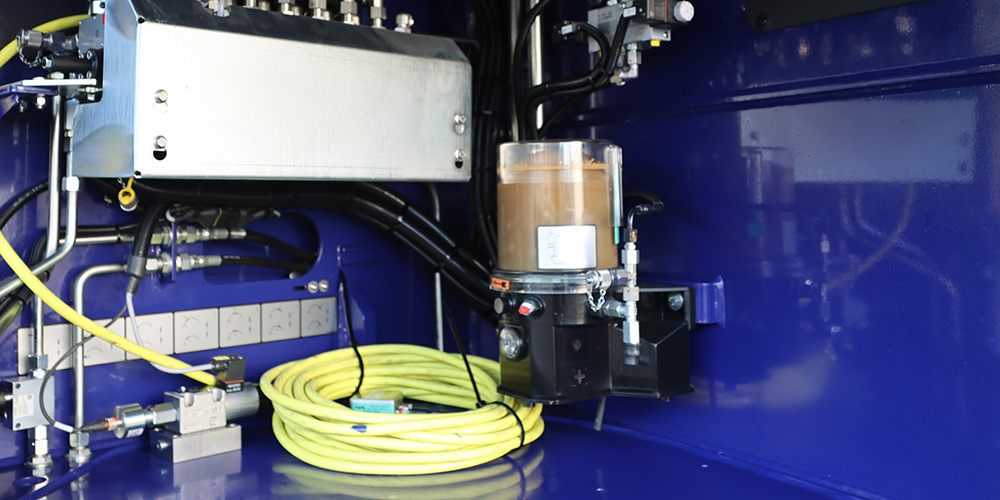

Central boom lubrication, electrically

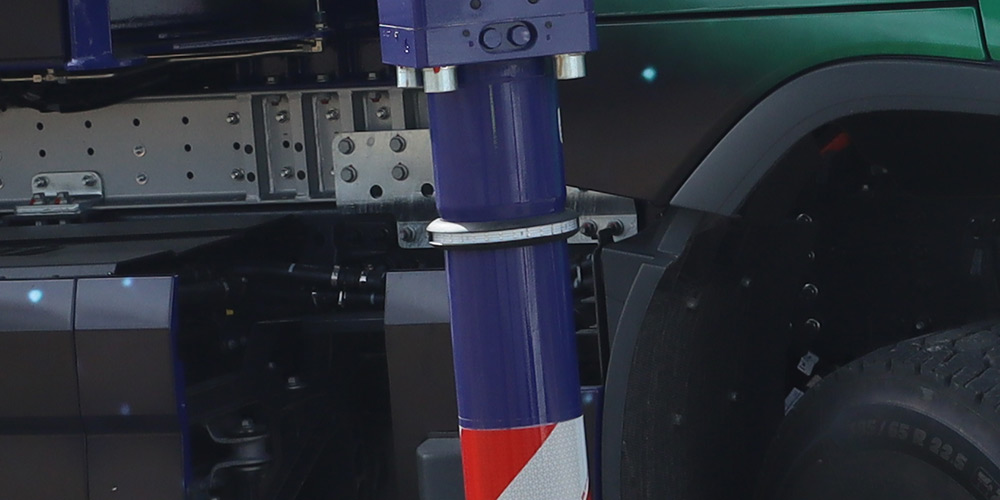

Indicator lights on support legs, front and rear, LED
■ Spotlights 4x for illumination support area, LED
■ High pressure water pump 100 bar, with dry-run protection
The iLS pump generation - intelligent Low Stroke – for more power and maximum service life
The heart of every truck-mounted concrete pump is the pump itself. Its mode of action, durability and operability are the economic indicators and determine the success of your operations. This is precisely the basis of the iLS pump generation, which delivers significantly improved data across the board. The iLS pump generation is the logical advancement of the tried and proven HLS generation
Special features:
■ Fuel savings of up to 25%
■ 3% increased efficiency through the prevention of leaks
■ 10 % better suction behaviour thanks to the elimination of constrictions in the concrete flow
■ Optimised drive unit
■ Maximum performance, minimum operating costs
■ Optimised conveying unit – ideal for the the heaviest concretes
■ Reduced wear for long service life
■ Optimised accessibility for maintenance and service
■ Automatic stroke correction without pump interruption
■ Field-tested and robust
■ Maximum quietness
