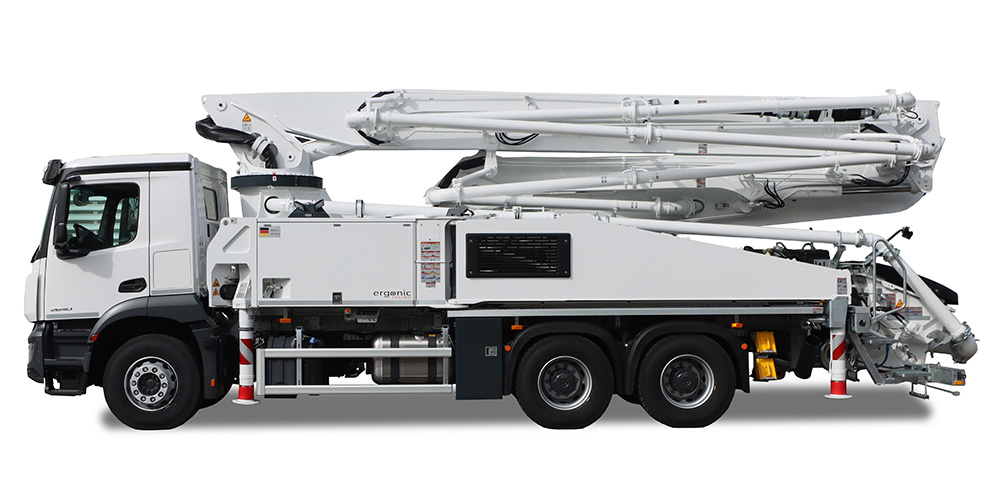

The Bauma Truck-mounted concrete pump M38-5 is equipped with the 170 m³/h concrete pump .17 iLS.
You see the M38-5 on the booth with the following configuration:
Chassis: Mercedes Benz AROCS 2640, Euro 6
Placing Boom: 38m Vertical reach, 5 arms, RZ-folding
Concrete Pump: 170 m³/h Output, 250 mm Delivery Cylinder Diameter, 2100 mm Stroke Length
These are the options of the bauma machine
The machine has all the Options from the High Line settings:
- Support plates (4x), in 2 magazines, closed (instead of open)
- Indicator lights on support legs, front and rear, LED
- High pressure water pump 100 bar, with dry-run protection
- Horn at boom, mushroom button yellow, mounted on hopper
- Inner panel on flatbed
- Timber wood 8x1000 in magazine (pos. depends on mounting)
- Spotlights 4x for illumination support area, LED
- Vibrator, radio remote/local controlled
- Boom rear lights on boom, LED
- Stowage compartment, RAL 7016 (depends on mounting)

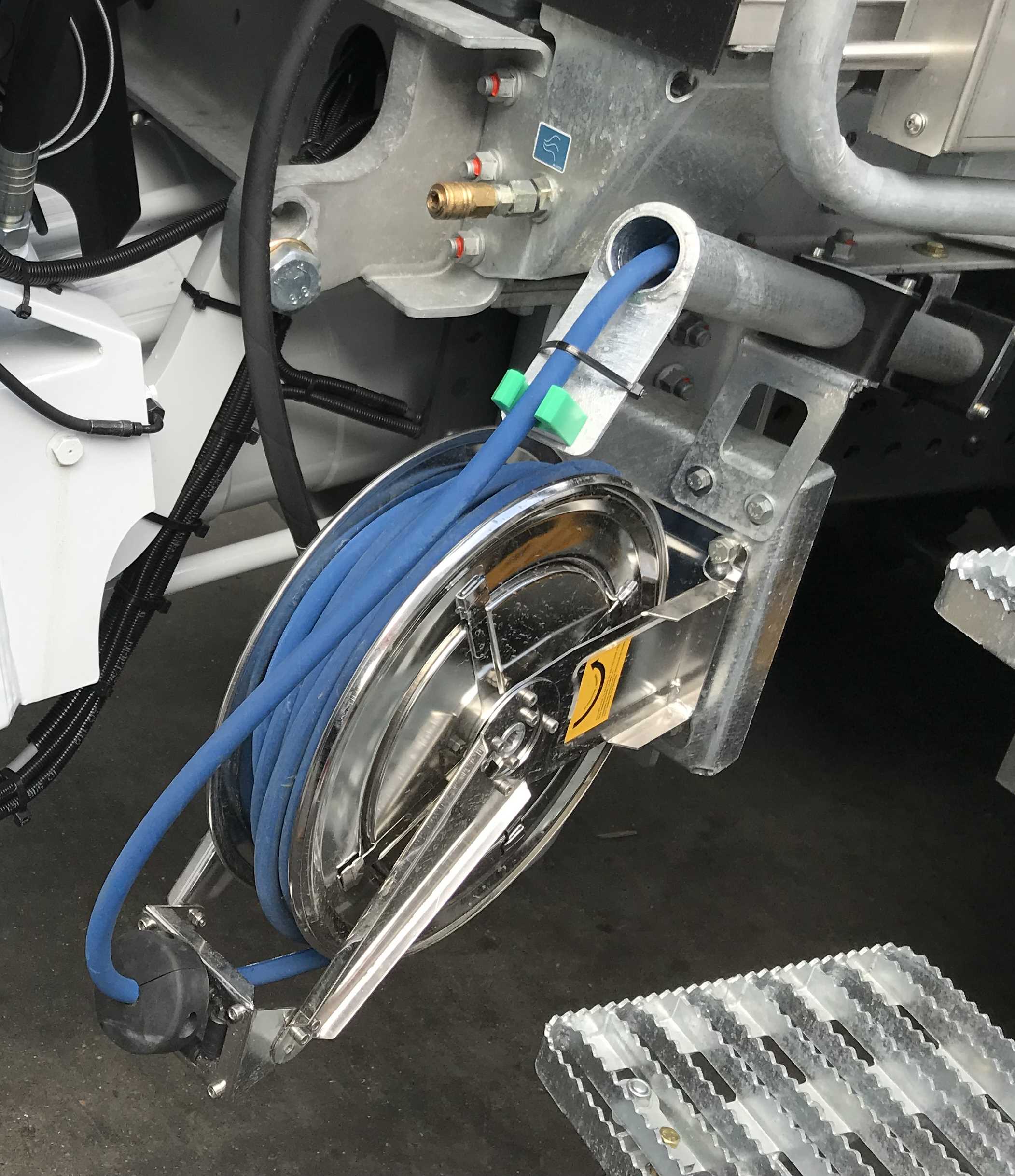

- Water hose reel for water pump
Europe KIT
- iSC (intelligent Setup Control)
- DE/EU road approval KIT
- Side marker lamps, LED
- Outline marker retroreflecting
- Underrun protection, lateral
- Rear markers
- Warning signal, boom not in cradle
- Holder for hammer and trowel
- Pressure gauge for centralized lubrication system
- Splash guard foldable

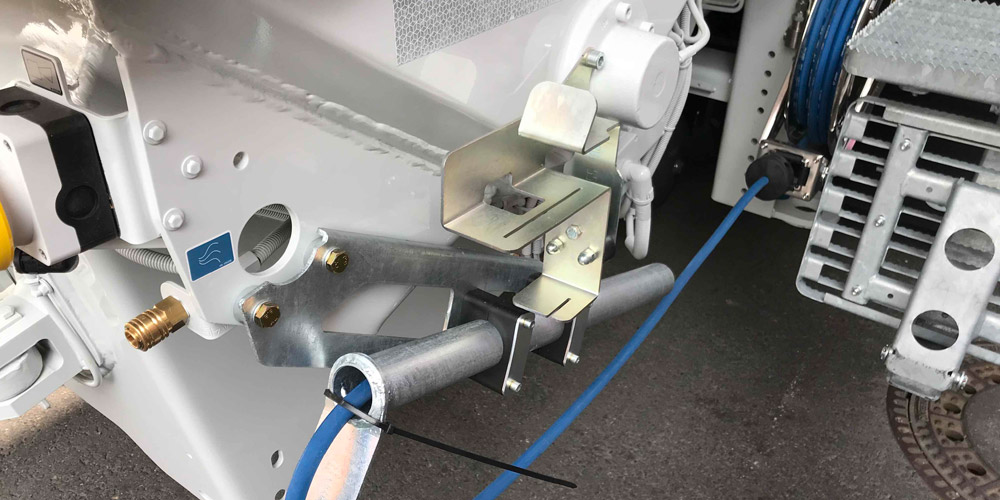

Rear lighting on bottom, slewable
Protected from damage, e.g. by a truck mixer. The lamps of the ordered chassis are integrated into the frame.

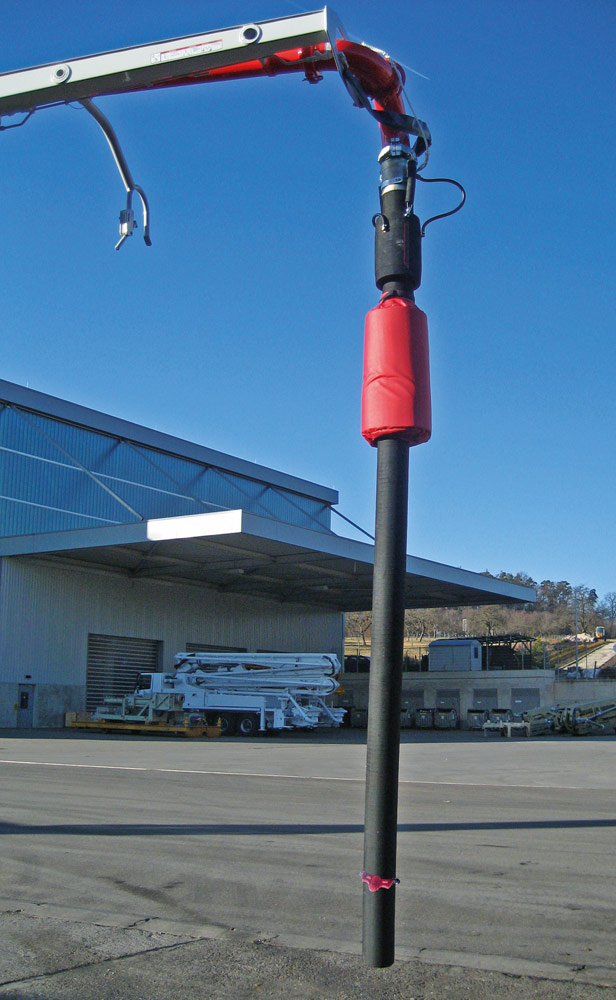

End hose 4m DN125, split (1m+2m) incl. End hose squeezing valve (EQV)
The split end hose enables you to use an end hose squeezing valve and a reduction hose for working in tight formwork

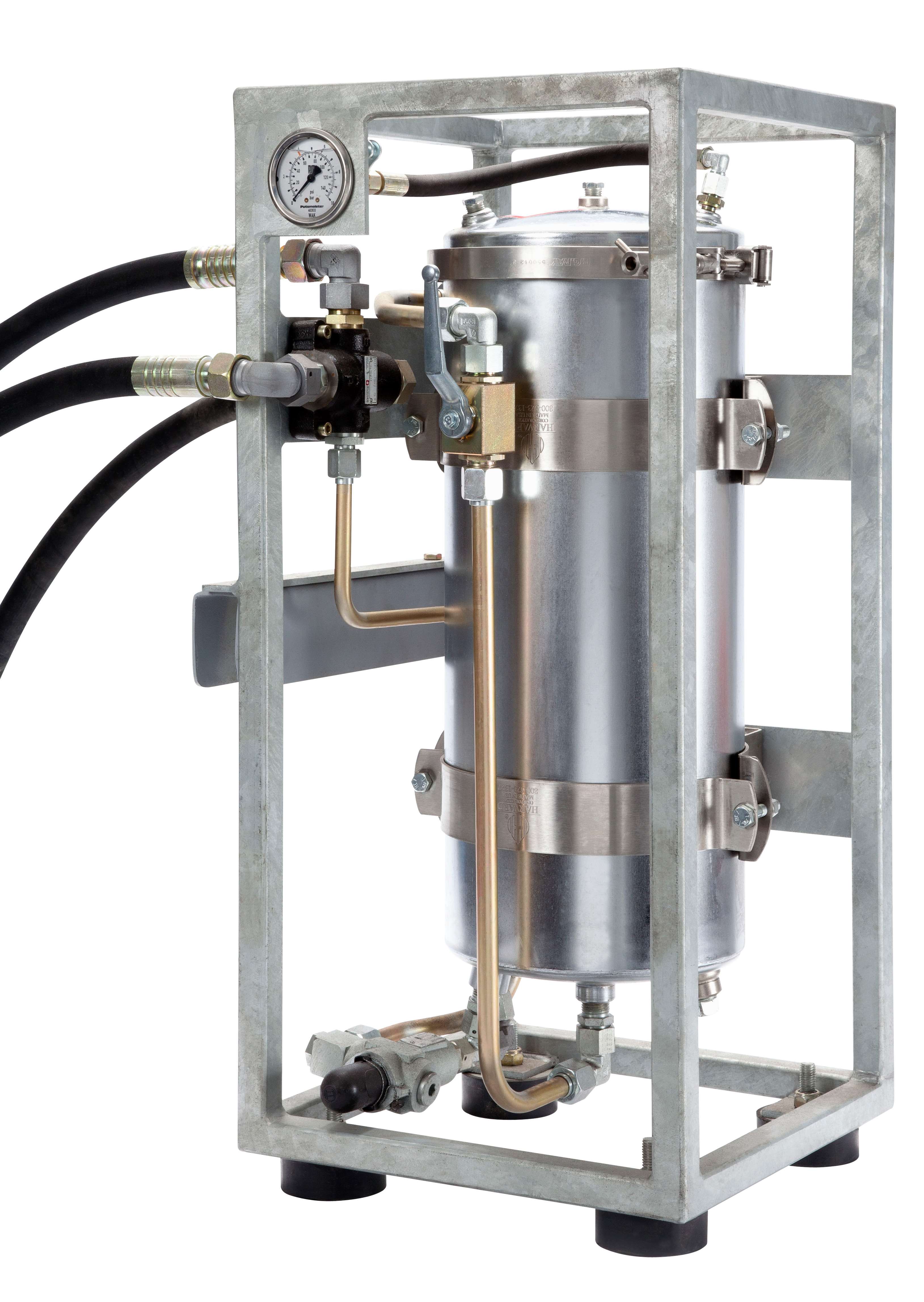

By-flow filter
The By-flow filter extends the lifetime of the hydraulic oil by providing an additional filter

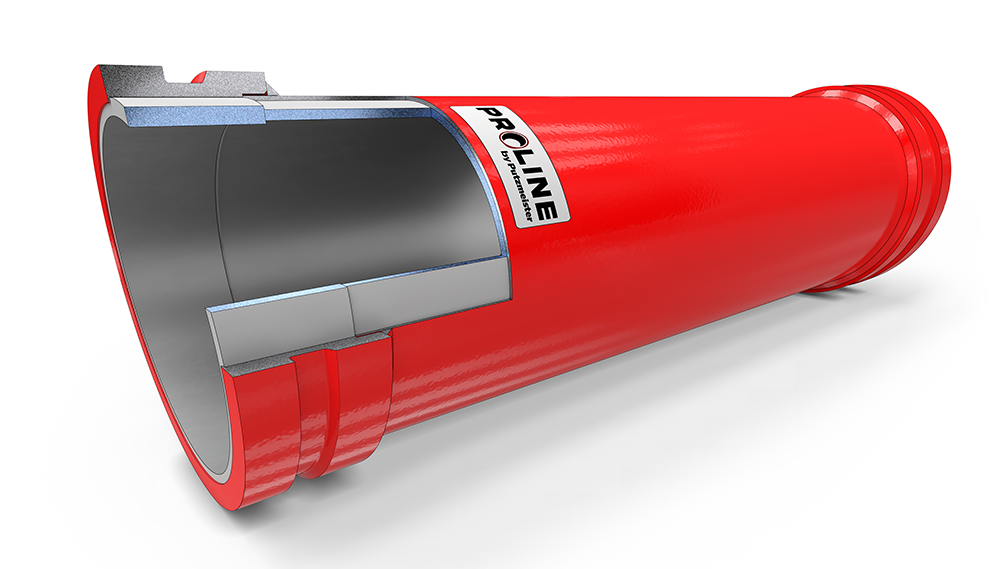

Proline 3000 - Twin layer pipe
Wear resistant delivery line,Twin layer pipe, 85 bar, up to 67 HRC

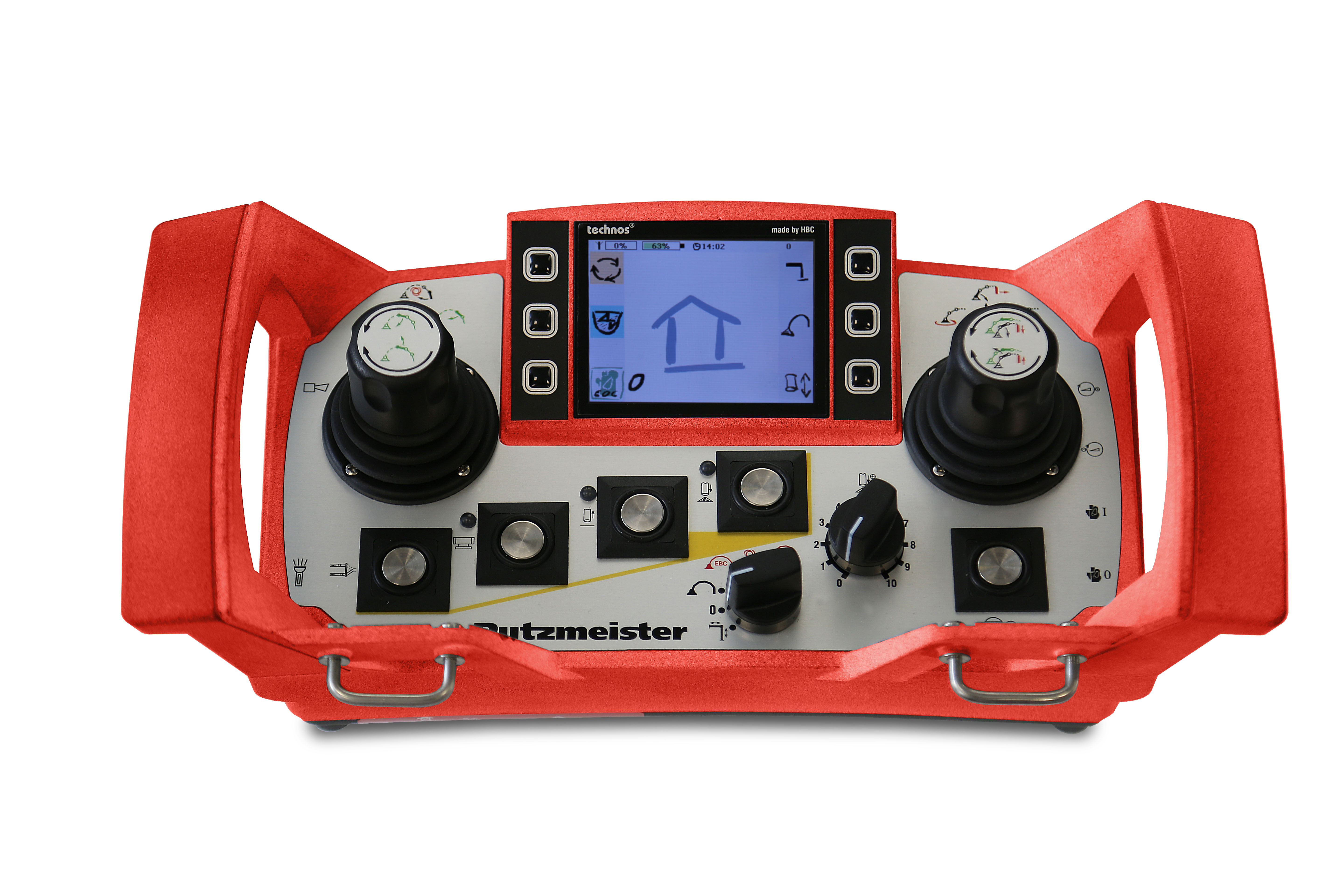

Cable remote control
reliable backup, e.g. in case of problems in the radio link.
iBC (intelligent Boom Control)
iBC enables the easy control of the boom with the Joystick using just one hand. As a result, the end hose can be moved forwards, backwards or diagonally at the preselected height with a great deal of precision.
The iLS pump generation - intelligent Low Stroke – for more power and maximum service life
The heart of every truck-mounted concrete pump is the pump itself. Its mode of action, durability and operability are the economic indicators and determine the success of your operations. This is precisely the basis of the iLS pump generation, which delivers significantly improved data across the board. The iLS pump generation is the logical advancement of the tried and proven HLS generation
Special features:
■ Fuel savings of up to 25%
■ 3% increased efficiency through the prevention of leaks
■ 10 % better suction behaviour thanks to the elimination of constrictions in the concrete flow
■ Optimised drive unit
■ Maximum performance, minimum operating costs
■ Optimised conveying unit – ideal for the the heaviest concretes
■ Reduced wear for long service life
■ Optimised accessibility for maintenance and service
■ Automatic stroke correction without pump interruption
■ Field-tested and robust
■ Maximum quietness
