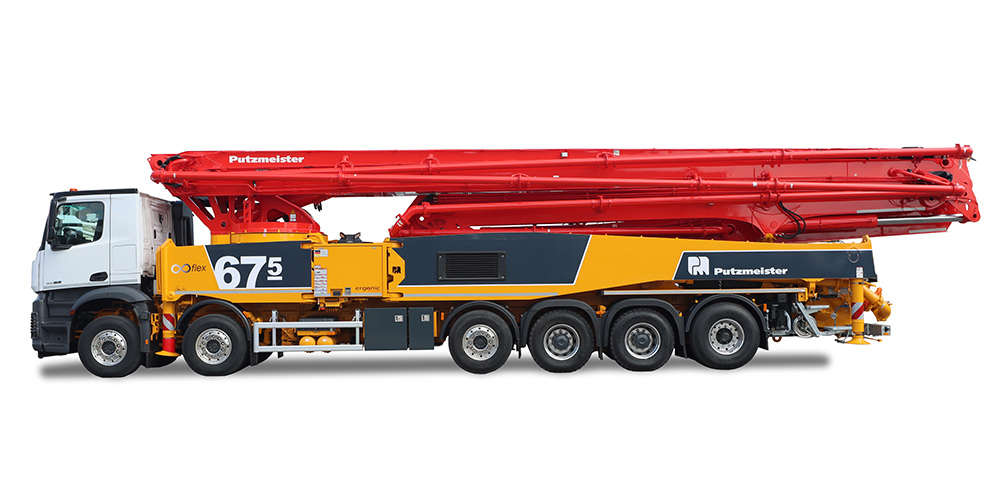

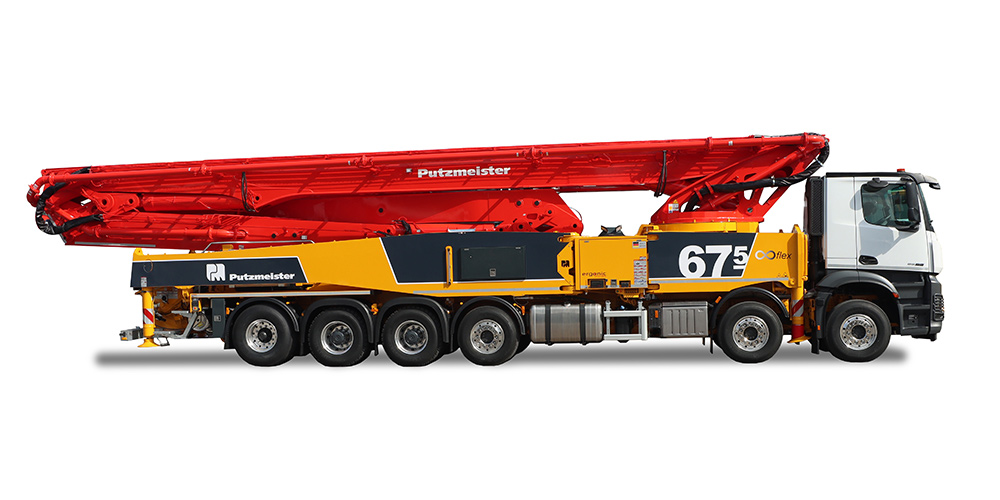

Discover the world's first 60m class 6x truck-mounted concrete pump with real Fullflex TRDV support.

The machine on display at the Putzmeister stand has the following configuration:

Chassis: Mercedes Benz AROCS 6563, Euro 6
Placing boom: 66.2m vertical reach, 5 arms, RZ folding
Concrete pump: Output 190 m³/h, 250 mm diameter delivery cylinder, 2100 mm stroke
Weight: Less than 60 to

Approved for Europe, Canada, various US states such as California, Washington, Florida and Israel.

The flexible boom with 5 arms

■ 66.2 m vertical reach with 5 arms in RZ-folding, less unfolding height than the M 63-5

■ Greater flexibility – a true 5-arm placing boom, easy and fast unfoldable

■ A 200 kg boom tip load enables a legal operation of standard boom tip equipment

■ Sturdy bolted pipehangers of the latest generation guarantees less failure and better parts availablilty

■ Enhanced safety and precision when moving the boom thanks to the iBC soft vibration damping system (optional)

■ The Putzmeister intelligent Support Control (iSC), in combination with completely flexible telescopic slewing legs and slewing legs in support position leads to unrivaled maximum of reach and flexibility

■ A real 0-support is possible

■ The Support width in front has been reduced from 12.4 m to 11.5 m only


Chassis advantages

■ No cab overhinge and no extra low cabin needed

■ Standard axle configuration in front, therefore no expensive modification necessary

New Concrete Pump feature

■ A super smooth reducer pipe leads to smooth pumping, even very difficult-to-pump mixes

Ergonomics

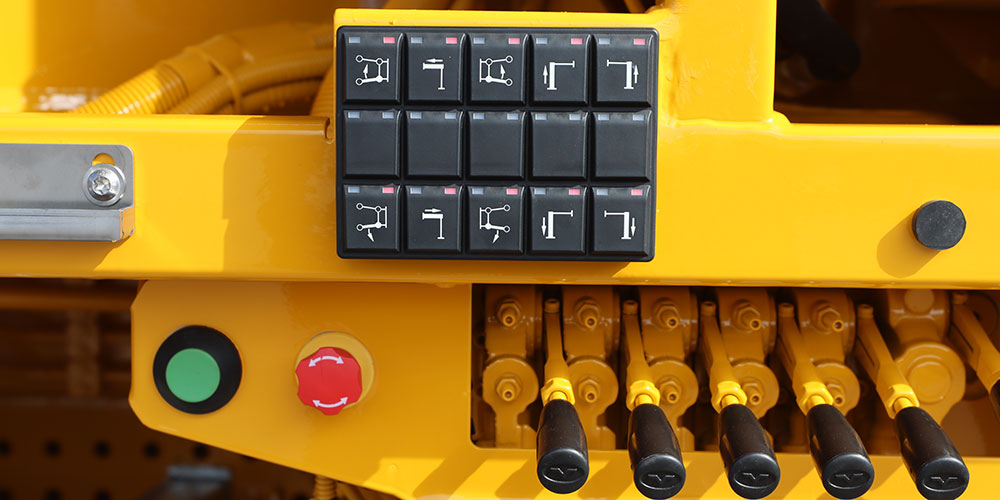

■ Support controls optimized – levers lowered and better protected keypad

■ Ergonomically perfect HMI

These are the options of the bauma machine on display

• Europe Kit with
  • iSC (intelligent Setup Control)
  • Side marker lamps, LED

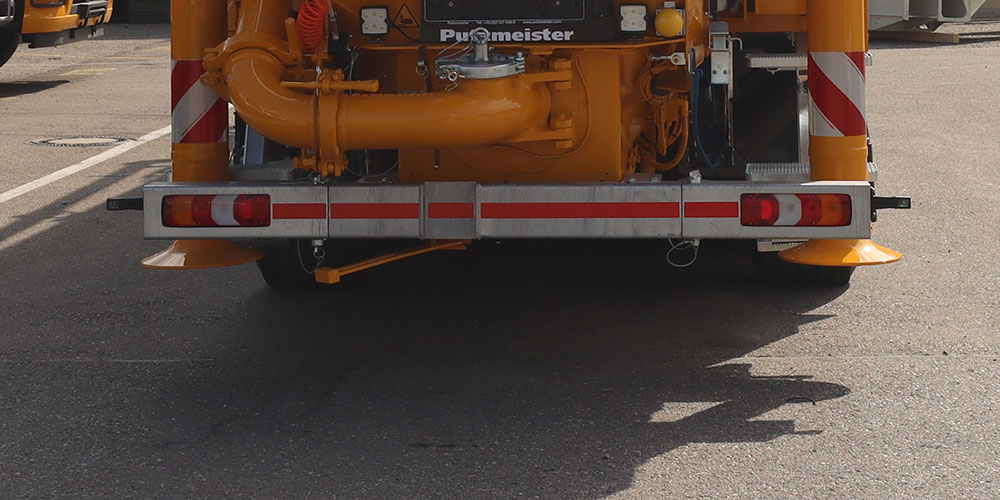

  • Underrun protection, lateral
  • Rear markers
  • Holder for hammer and trowel
  • Pressure gauge for centralized lubrication system

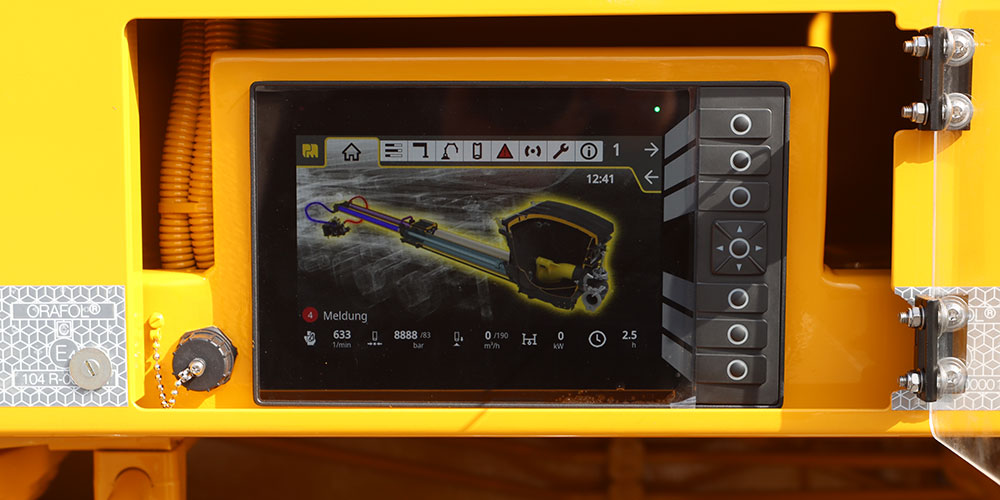

• Ergonic 3 Control
• LED Flashlight at boom
• Lines for Water or Air to boom tip
• Electro cable to boom tip
• automatic Agitator direction change at high torque (Blockage)

• Highline Equipment with
  • LED Boom rear lights
  • LED Indicator lights on support legs front and rear
  • High pressure water pump 100 bar

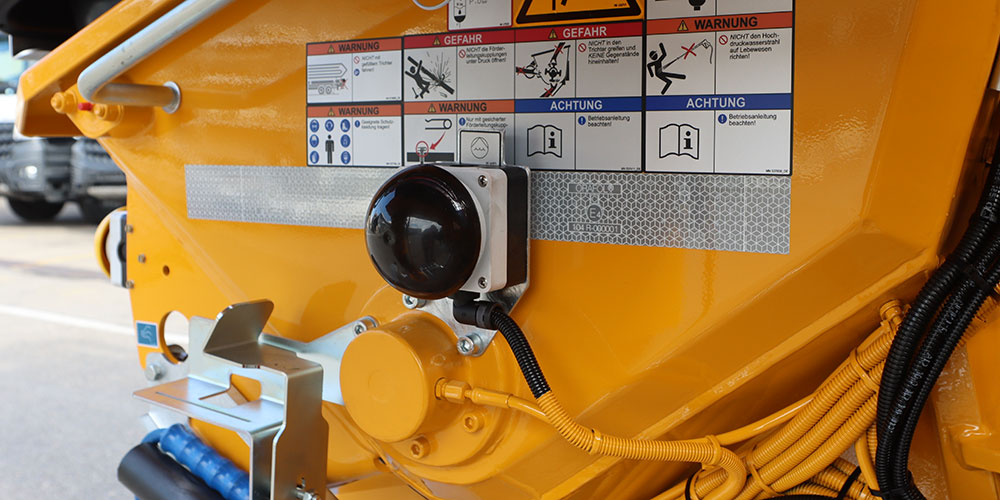

  • Horn at boom, mushroom button yellow, mounted on hopper
  • Inner panel on flatbed
  • Support plates (4x), in 2 magazines, closed (instead of open)
  • Timber wood 8x1000 in magazine
  • Vibrator

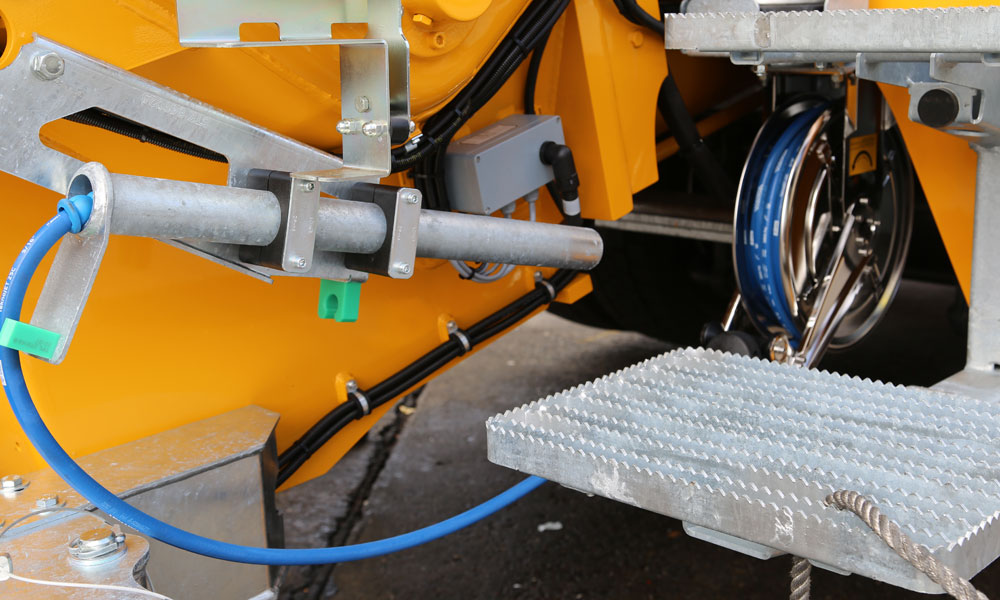

  • Water hose reel for water pump

The iLS pump generation - intelligent Low Stroke – for more power and maximum service life

The heart of every truck-mounted concrete pump is the pump itself. Its mode of action, durability and operability are the economic indicators and determine the success of your operations. This is precisely the basis of the iLS pump generation, which delivers significantly improved data across the board. The iLS pump generation is the logical advancement of the tried and proven HLS generation

Special features:

■ Fuel savings of up to 25%

■ 3% increased efficiency through the prevention of leaks

■ 10 % better suction behaviour thanks to the elimination of constrictions in the concrete flow

■ Optimised drive unit

■ Maximum performance, minimum operating costs

■ Optimised conveying unit – ideal for the the heaviest concretes

■ Reduced wear for long service life

■ Optimised accessibility for maintenance and service

■ Automatic stroke correction without pump interruption

■ Field-tested and robust

■ Maximum quietness
